Search By Parameters
Total Products
23| Package type | Product Image | Model | Package size (mm3) | Frequency Range | Operating Temperature (°C) | Frequency Stability | Supply Voltage | Frequency Pulling | Output |
|---|---|---|---|---|---|---|---|---|---|

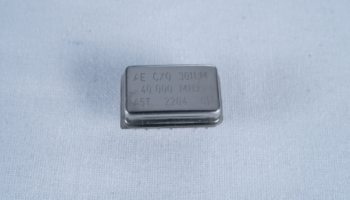

Through Hole  |  | CXO-301 | 20.7 x 13.0 x 5.1 (DIL-14) | 1 MHz to 70 MHz | -20 to +70 -40 to +85 -55 to +105 | ±10ppm to ± 100ppm | +3.3V +5V | HCMOS TTL | |

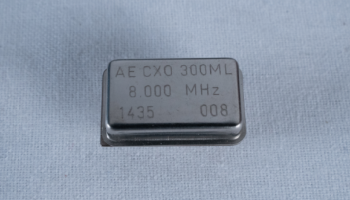

Through Hole |  | CXO-300 / 400 / 425 | 20.7 x 13.0 x 5.1 (DIL-14) | 1 MHz to 70 MHz | -20 to +70 -40 to +85 | ±10ppm to ± 100ppm | +3.3V +5V | HCMOS TTL | |

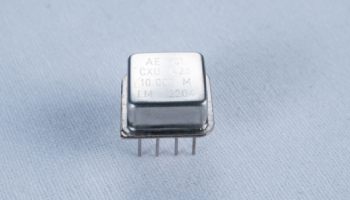

Through Hole |  | CXO-1300 / 1400 / 1425 | 12.60 x 12.60 x 5.50 (DIL-14) | 1 MHz to 70 MHz | -20 to +70 -40 to +85 | ±10ppm to ± 100ppm | +3.3V +5V | HCMOS TTL | |

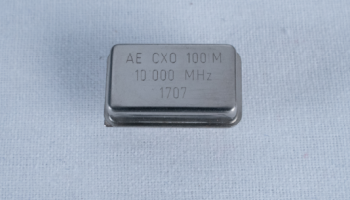

Through Hole |  | CXO-100 / 200 / 225 | 20.7 x 13.0 x 5.1 (DIL-14) | 32 KHz to 210 MHz | -20 to +70 -40 to +85 | ±10ppm to ± 100ppm | +3.3V +5V | HCMOS TTL | |

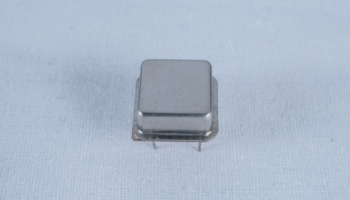

Through Hole |  | CXO-600 / 800 / 825 | 13.08 x 13.08 x 5.50 (DIL-8) | 32 KHz to 210 MHz | -20 to +70 -40 to +85 | ±10ppm to ± 100ppm | +3.3V +5V | HCMOS TTL | |
Through Hole |  | XO-1028 | 20.70 x 13.0 x 10.0 (DIL-14) | 4.5 KHz | -40 to +85 | ±50ppm | +5V | HCMOS | |
Through Hole |  | XO-1035 | 20.7 x 13.0 x 8.5 (DIL-14) | 8 MHz to 160 MHz | -20 to +70 -40 to +85 -10 to +60 | ±10ppm to ± 50ppm | +5V +12V +15V | Sine Wave | |
SMD |  | CXO-7050 | 7.0 x 5.0 x 1.4 | 0.312 MHz to 160 MHz & 32.768 KHz | -20 to +70 -40 to +85 -40 to +105 | ±20ppm to ± 100ppm | +1.8V +2.5V +3.3V +5V | HCMOS | |
SMD |  | CXO-3225 | 3.2 x 2.5 x 1.0 | 0.312 MHz to 160 MHz & 32.768 KHz | -20 to +70 -40 to +85 | ±20ppm to ± 100ppm | +1.8V +2.5V +3.3V +5V | HCMOS | |
SMD |  | CXO-2520 | 2.5 x 2.0 x 0.95 | 0.156 MHz to 80 MHz | -20 to +70 -40 to +85 | ±20ppm to ± 100ppm | +1.8V +2.5V +3.3V +5V | HCMOS | |

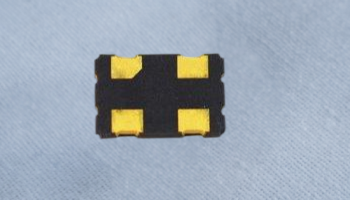

SMD |  | CXO-5032 | 5.0 x 3.2 x 1.2 | 0.312 MHz to 160 MHz & 32.768 KHz | -20 to +70 -40 to +85 -40 to +105 | ±20ppm to ± 100ppm | +1.8V +2.5V +3.3V +5V | HCMOS | |
SMD |  | CXO-2016 | 2.0 x 1.6 x 0.8 | 1 MHz to 60 MHz | -20 to +70 -40 to +85 | ±20ppm to ± 100ppm | +1.8V +2.5V +3.3V +5V | HCMOS | |
SMD |  | XO-0320 | 3.2 x 2.5 x 1.20 | 15 MHz to 200 MHz | -20 to +70 -40 to +85 -10 to +70 | ±20ppm to ± 50ppm | +2.5V +3.3V | LVDS | |
SMD |  | XO-0530 | 5.0 x 3.2 x 1.30 | 15 MHz to 200 MHz | -20 to +70 -40 to +85 -10 to +70 | ±20ppm to ± 50ppm | +2.5V +3.3V | LVDS | |
SMD |  | XO-0580 | 7.0 x 5.0 x 1.8 | 15 MHz to 200 MHz | -20 to +70 -40 to +85 | ±20ppm to ± 50ppm | +1.8V +2.5V +3.3V | LVDS | |
SMD |  | XO-0590 | 7.0 x 5.0 x 1.8 | 15 MHz to 200 MHz | -20 to +70 -40 to +85 -30 to +80 | ±20ppm to ± 50ppm | +1.8V +2.5V +3.3V | LVDS | |
SMD |  | XO-0960 | 7.0 x 5.0 x 1.8 | 150 MHz to 2100 MHz | -20 to +70 -40 to +85 -10 to +70 | ±20ppm to ± 50ppm | +2.5V +3.3V | LVPECL | |
SMD |  | XO-0970 | 7.0 x 5.0 x 1.8 | 15 MHz to 200 MHz | -20 to +70 -40 to +85 -0 to +70 | ±20ppm to ± 100ppm | +2.5V +3.3V | LVPECL | |
SMD |  | XO-0980 | 7.0 x 5.0 x 1.8 | 150 MHz to 1500 MHz | -20 to +70 -40 to +85 -10 to +60 | ±20ppm to ± 50ppm | +2.5V +3.3V | LVPECL | |

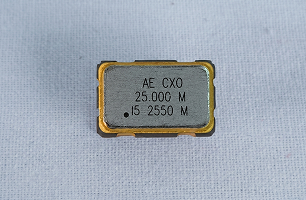

SMD |  | CXO-5033 | 5.0 x 3.2 x 1.30 | 10 MHz to 70 MHz | -40 to +85 -40 to +105 | ±5ppm to ± 50ppm | +2.5V +3.3V | HCMOS | |
SMD |  | CXO-3223 | 3.2 x 2.5 x 1.20 | 10 MHz to 70 MHz | -40 to +85 -40 to +105 -55 to +125 | ±10ppm to ± 50ppm | +1.8V +2.5V +1.8 - 3.3V | HCMOS | |
SMD |  | CXO-7053 | 7.0 x 5.0 x 1.4 | 1 MHz to 70 MHz & 32.768 KHz | -40 to +85 -55 to +125 | ±25ppm to ± 100ppm | +3.3V | HCMOS | |
SMD |  | XO-0990 | 7.0 x 5.0 x 1.8 | 150 MHz to 1500 MHz | -20 to +70 -40 to +85 -10 to +70 | ±20ppm to ± 50ppm | +2.5V +3.3V | LVPECL |
